How Poor Drainage Damages Slab Foundations

Here's a number that should reorder some priorities: a meaningful share of the "foundation problems" we inspect resolve into water problems wearing a structural costume — and the fixes cost hundreds, not thousands. Drainage is the least glamorous topic on this site and the highest-return one.

The mechanism: differential moisture

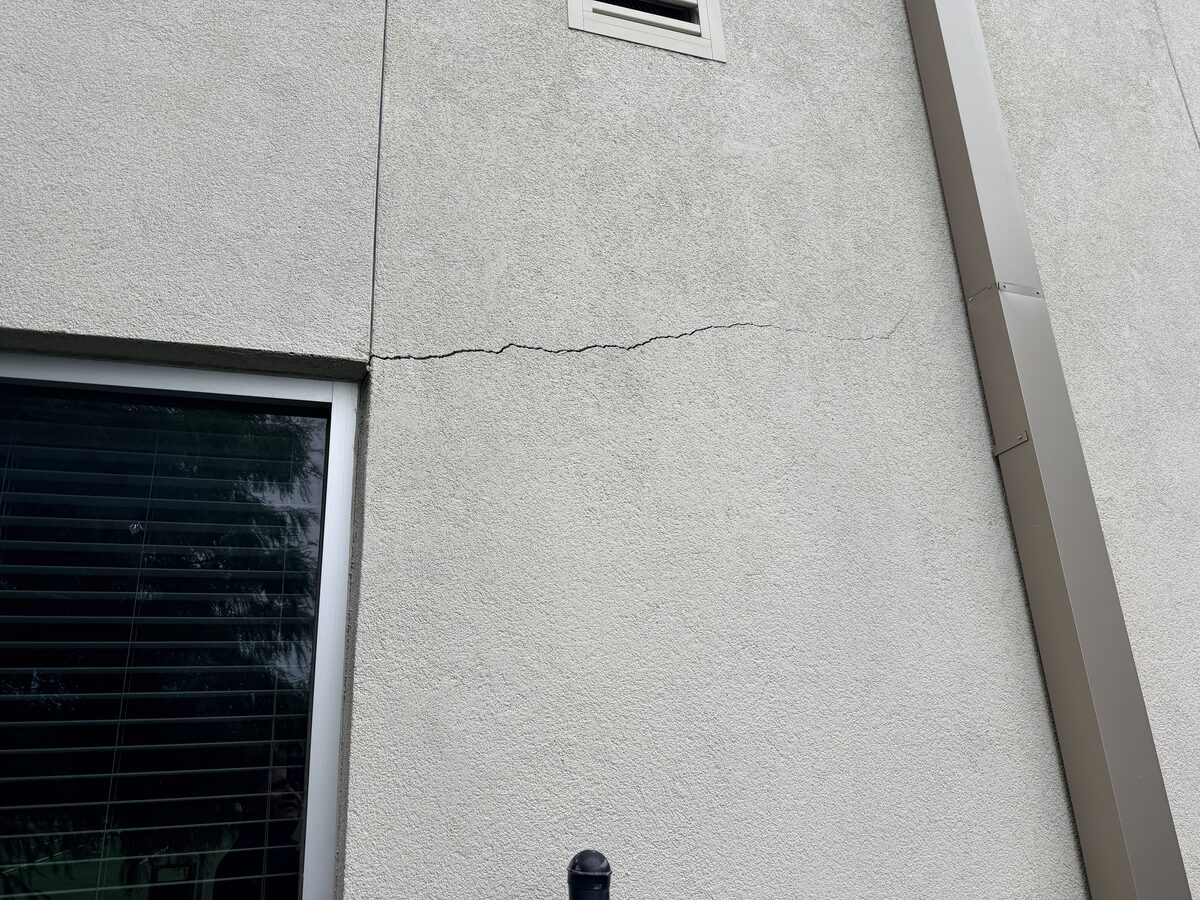

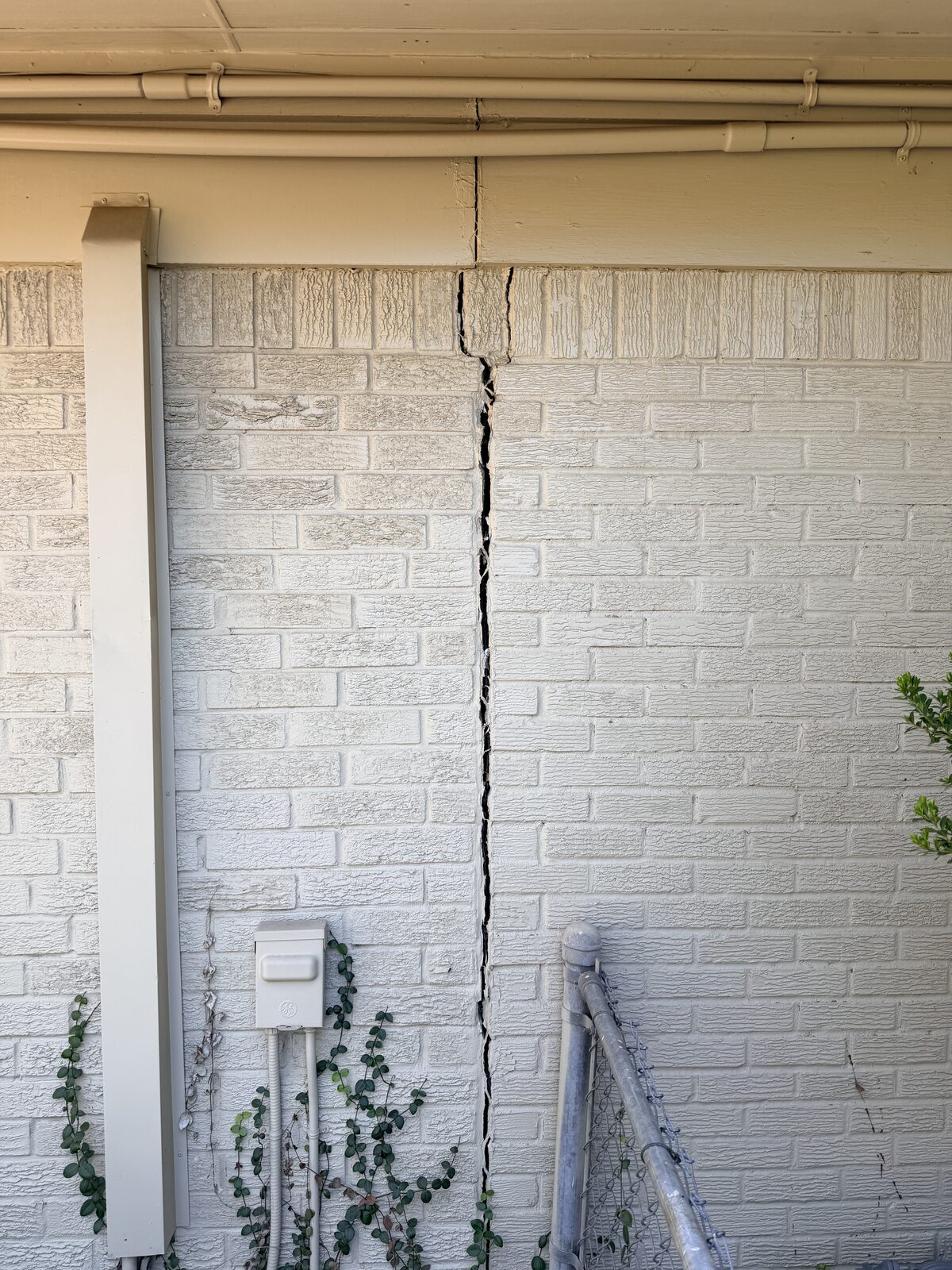

Expansive clay doesn't mind being wet or dry — it minds being both at once. A downspout dumping at one corner keeps that clay swollen; the unshaded west edge bakes; and now your slab sits on soil at two different volumes. That difference is exactly the differential movement that cracks brick and racks doors. The diagram above is one house manufacturing both problems simultaneously, with nothing but rain and bad routing.

The usual suspects

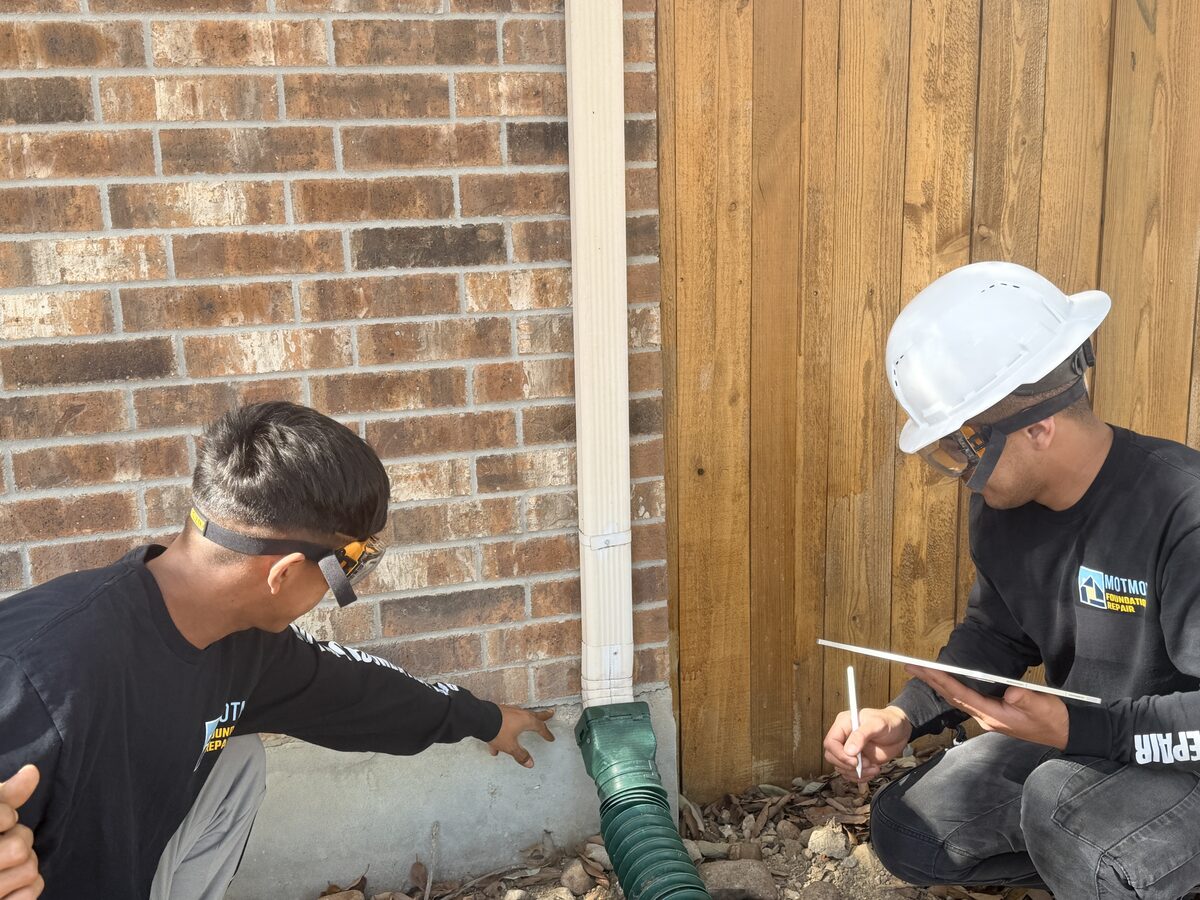

• Downspouts without extensions — roof water concentrated at corners, the #1 finding on our inspections.
• Grading toward the house — original or, more often, achieved gradually by decades of beds, mulch, and patio pours raising the soil line.
• Flatwork traps — sidewalks and patios that block water's exit and pond it against the slab.
• Irrigation imbalance — daily-watered beds against one wall, nothing on the others: a man-made moisture differential on a timer.
• The neighbor's runoff — on graded lots, uphill changes (new pool deck, re-landscaping) reroute storm water onto your side. Foundations notice within a season.

The weekend fix list, in order of return

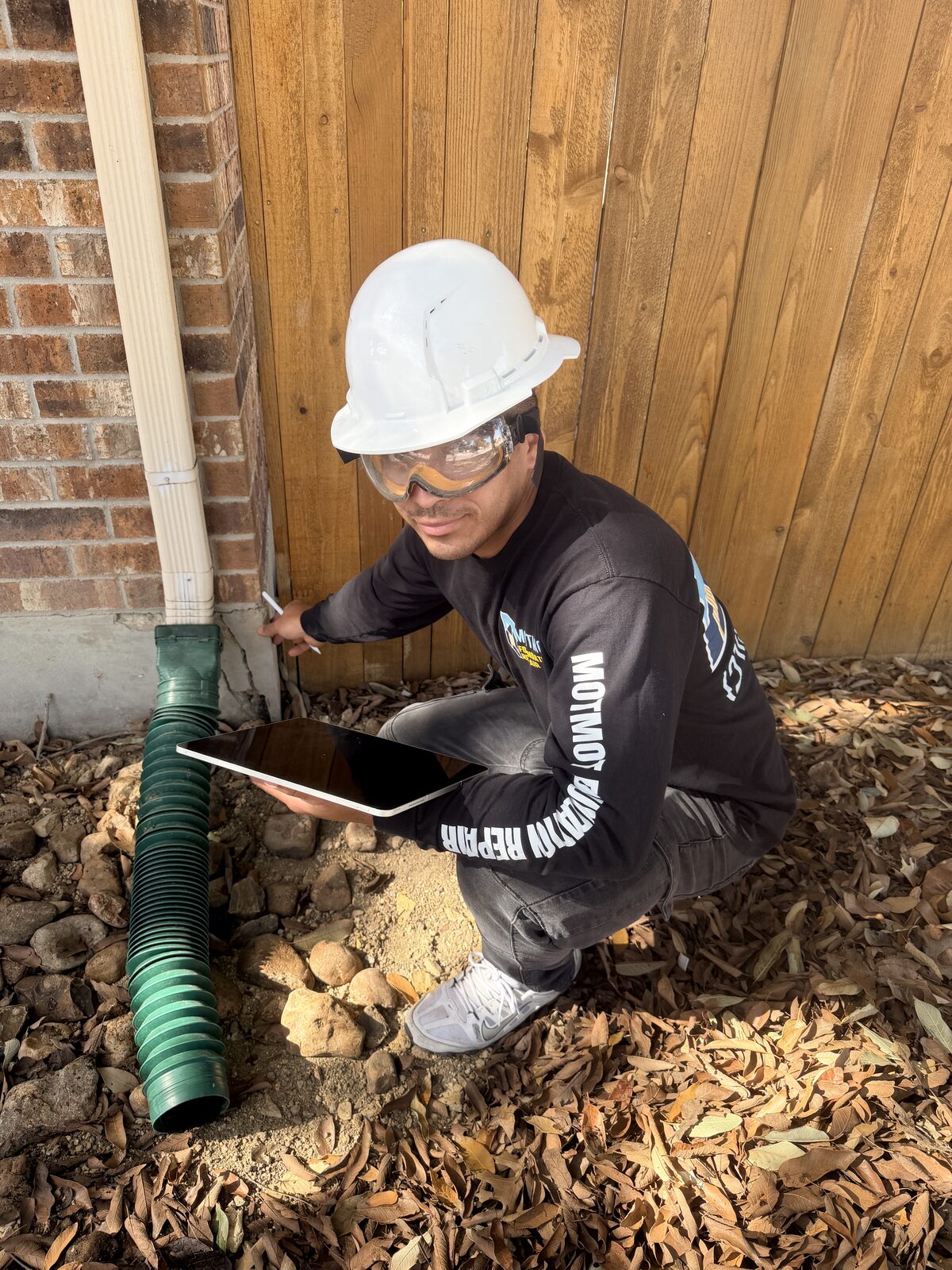

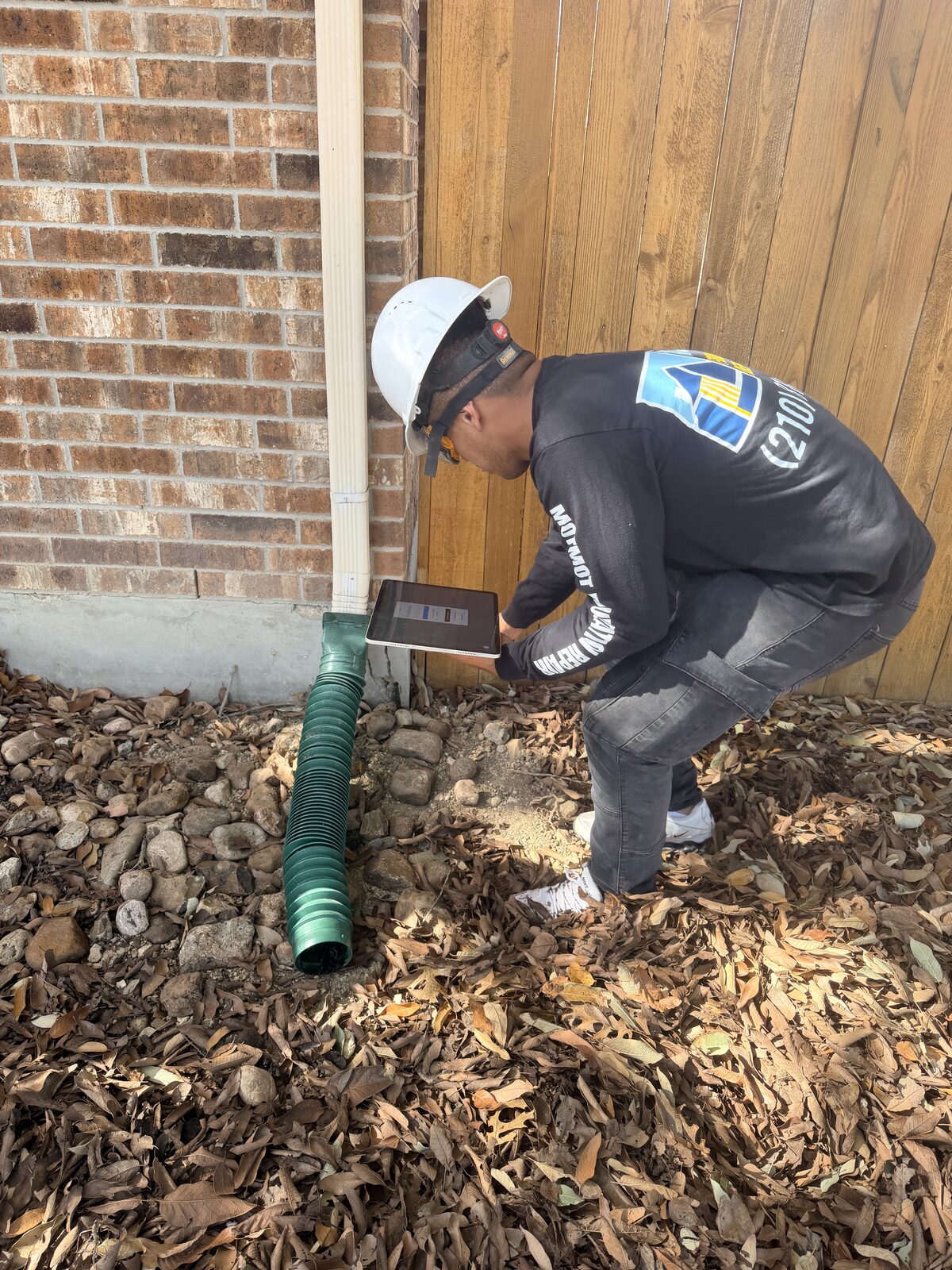

1) Downspout extensions to carry water 4–6 feet out (under $20 each). 2) Clean the gutters — clogged equals absent. 3) Re-cut grade where soil has crept up: 6 inches of fall in 10 feet. 4) Move irrigation heads watering the foundation line. 5) In drought, add the soaker-hose program so the dry sides keep pace with the wet ones. Most of this list is a Saturday and a hundred dollars — against a five-figure repair it might prevent.
